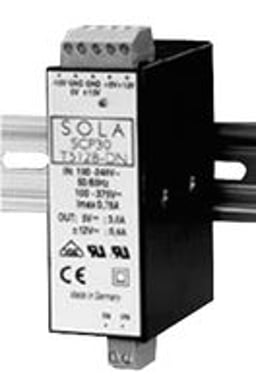

Sola/Hevi-Duty SCP30T512B-DN
$ 300.18
描述
由其分销商提供的 Sola/Hevi-Duty SCP30T512B-DN 的描述。
AC/DC Power Supply Triple-OUT 5V/-12V/12V 3A/0.6A/0.6A 30W 7-Pin
30W 5/12/12V SW P S SLIM DIN SOLA Part Number SCP30T512BDN NAED #: 78347215240
DC Power Supply 30W 3.0A/5VDC 0.6A/12VDC 0.6A/-12VDC
Din-Rail Switching Power Supply 30W 5V/-12V/12V SLIM
Solahd/Appleton Grp 30W 5/12/12V Sw P S Slim Din
POWER SUPPLY SCP SERIES in.Bin. SLIM
AC/DC DIN RAIL SUP 5V +/-12V 29W
Ac-Dc Converter, Din Rail, 3 O/P, 30W, 5V, 12V, -12V; Power Supply Applications:Ite; No. Of Outputs:3 Output; Output Power Max:30W; Output Voltage - Output 1:5Vdc; Output Current - Output 1:3A; Output Voltage - Output 2:-12Vdc Rohs Compliant: Yes |Solahd SCP30T512B-DN
制造商别名
Sola/Hevi-Duty 在全球拥有多个品牌，分销商可将其用作替代名称。Sola/Hevi-Duty 也可称为以下名称：
- SOLA
- SOLAHD
- SOLA ELECTRIC
- SOLTRN
- Sola Heavy Duty
- Sola Regulator
- SOLA ELECTRIC CORP
- SOLA ELECTRIC ACCT
- Sola/Hevi-Duty Electric
- SOLAR ELECTRONICS COMPANY
- Emerson SolarHD
- SOLA ELECTRIC C/OLESCO INC ACCT
- Sola
- Hevi-Duty
技术规格
Physical
MountDIN Rail
Number of Pins7
Technical
Current - Output 13 A
Current - Output 2600 mA
Max Operating Temperature65 °C
Max Output Power30 W
Min Operating Temperature-25 °C
Number of Outputs3
Output Current600 mA
Power Rating30 W
Voltage - Output 15 V
Voltage - Output 212 V
Dimensions
Height120 mm
Length68 mm
Width35 mm
