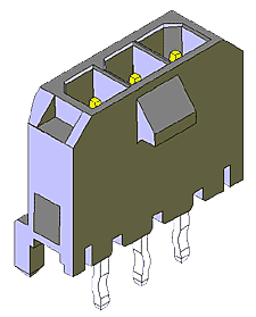

Molex 43650-0316

Micro-Fit 3.0 Connector Header 3 Position 3mm Solder Straight Thru-Hole 3 Terminal 1 Port
$ 0.705
Production
制造商页面数据表

价格与库存

查看所有价格优惠
DistributorSKUMinPkg
Avnet04365003169,2651
1d
Newark
3
43650-03162410
Verical
5
043650031619512
Arrow Electronics
2
043650031614,6171
TME
2
MX-43650-03161481
3h

数据表和文档

下载 Molex 43650-0316 的数据表和制造商文档。

IHS

Datasheet2 页5 年前

Sager Electronics

Molex

Farnell

Master Electronics

库存历史记录

3 个月趋势:
-21.72%
Powered bySpectra logo

CAD 模型

从我们值得信赖的合作伙伴处下载 Molex 43650-0316 符号、封装和 3D STEP 模型。

来源eCADmCAD文件
Component Search Engine
符号封装
3D下载
EE Concierge
符号封装
SnapEDA
符号封装
3D下载
下载 CAD 模型时，合作伙伴网站将在新标签页中打开
从 Octopart 下载 CAD 模型，即表示您同意我们的条款和条件以及隐私政策。

供应链

Country of OriginUS
Export Control Classification Number (ECCN) CodeEAR99
Harmonized Tariff Schedule (HTS) Code8536.69.40.30
Introduction Date1999-02-05
Lifecycle StatusProduction (Last Updated: 5 years ago)
Manufacturer Lifecycle StatusACTIVE (Last Updated: 5 years ago)

相关零件

Molex22-28-4038
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole KK Bag
详细信息
Molex70543-0002
Conn Shrouded Header (4 Sides) HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole SL Tube
详细信息
Molex70553-0002
Conn Shrouded Header (4 Sides) HDR 3 POS 2.54mm Solder RA Side Entry Thru-Hole SL Tube
详细信息
TE Connectivity5-103908-2
Conn Shrouded Header (4 Sides) HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole Tube
详细信息
TE Connectivity103735-2
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Automotive Tube
详细信息
TE Connectivity104361-2
Conn Shrouded Header (4 Sides) HDR 3 POS 2.54mm Solder RA Side Entry Thru-Hole Tube
详细信息

描述

由其分销商提供的 Molex 43650-0316 的描述。

Micro-Fit 3.0 Connector Header 3 Position 3mm Solder Straight Thru-Hole 3 Terminal 1 Port
Jameco
Pin Header, Power, Wire-to-Board, 3 mm, 1 Rows, 3 Contacts, Through Hole Straight
Avnet
MOLEX 43650-0316 Header Single Row 180° 3p 0.38µm Gold PCB Peg, GW Compatible
Compona
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
Molex
CONNECTOR, HEADER, 3POS, 1ROW, 3MM; Pitch Spacing:3mm; No. of Contacts:3Contacts; Gender:Header; Product Range:Micro-Fit 3.0 43650 Series; Contact Termination ; Available until stocks are exhausted Alternatives available
element14 APAC
Wire-Board Connector, Header, 3 Position, 3Mm; Rango De Producto:Serie Micro-Fit 3.0 43650; Espaciado, Paso:3Mm; Tipo De Terminación Del Contacto:Agujero Pasante; Núm. De Contactos:3; Núm. De Filas:1; Conector, Montaje:Pcb |Molex 43650-0316
Newark
Pitch mm = 3 / Contacts = 3 / Rows = 1 / Gender = Plug / Body Orientation = Vertical / Mounting Type = Through Hole / Contact Material = Brass / Contact Plating = Gold / Shrouded = Yes / Mounting Pin Length mm = 3.18 / Current Rating A = 8.5 / Voltage Rating V = 600 / Operating Temperature Min. °C = -40 / Operating Temperature Max. °C = 105 / Flammability Rating = UL 94V-0 / Series = Micro-Fit 3.0
Distrelec


Molex
Molex
Molex
RS (Formerly Allied Electronics)
element14 APAC
TME
RS (Formerly Allied Electronics)
TestEquity
Sager Electronics

制造商别名

Molex 在全球拥有多个品牌，分销商可将其用作替代名称。Molex 也可称为以下名称：

  • MOLEX INC
  • MOL
  • MLX
  • Molex LLC
  • Molex Connector Corporation
  • MOLE
  • MOLX
  • MOLEX INCORPORATED
  • MOLEX ELECTRONICS
  • MOLEX CONNECTOR CORP
  • MOLEX HONG KONG CHINA LTD
  • MOLEX INTERCONNECT GMBH
  • Molex / FCT
  • MXA
  • Molex Taiwan Ltd
  • Molex - Oplink Communications LLC
  • MOLEX-ETC
  • MOLEX PREMISE NETWORK
  • MOLEX GMBH
  • MOLEX INDUSTRIAL HDC
  • MOELX
  • MOLEX INDUSTRIAL
  • MOLEX ELEKTRONIK GMBH
  • MOLEX INTERCONNECT
  • MOLEX CONNECTOR
  • Molex, LLC

零件编号别名

该零件可能有以下备用零件编号：

  • 0436500316
  • 43650-0316 .
  • 43650-0316.
  • 436500316
