供应链
Lifecycle StatusProduction (Last Updated: 1 week ago)
Manufacturer Lifecycle StatusACTIVE (Last Updated: 1 week ago)
相关零件
TE Connectivity / AMP6-292161-4
CT P/HDR ASSY V 4P W/KINK BLAC, PCB Headers and Receptacles | TE Connectivity 6-292161-4
TE Connectivity4-292161-4
Conn Shrouded Header (3 Sides) HDR 4 POS 2mm Solder ST Top Entry Thru-Hole Bag/Box
描述
由其分销商提供的 TE Connectivity 292161-4 的描述。

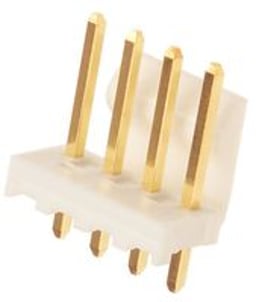

Post Header Assembly, 4 Position, Vertical, 2mm Pitch, DIP Standard Type
Pin Header, Vertical, Wire-to-Board, 2 mm, 1 Rows, 4 Contacts, Through Hole Straight, AMP CT
Conn Shrouded Header (3 Sides) HDR 4 POS 2mm Solder ST Top Entry Thru-Hole Bag/Box
TE Connectivity 292161-4 Header Male 4P Vertical Unshrouded Wire Housing
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle
Wire-Board Connector, Header, 4 Position, 2Mm; Connector Systems:Wire-To-Board; Pitch Spacing:2Mm; No. Of Rows:1Rows; No. Of Contacts:4Contacts; Contact Termination Type:Through Hole Straight; Product Range:Amp Ct Series Rohs Compliant: Yes |Amp Te Connectivity 292161-4.
CT P/HDR ASSY V 4P W/KINK NAT PCB Connector Type: PCB Mount Header PCB Mount Orientation: Vertical Connector System: Wire-to-Board Number of Positions: 4 Number of Rows: 1 PCB Mount Header Vertical Wire-to-Board 4 | Ct 2Mm Post Header Asmbly: Box V Dip | Part Number: 292161-4 | Internal Number: 292161-4 | TE Connectivity
制造商别名
TE Connectivity 在全球拥有多个品牌，分销商可将其用作替代名称。TE Connectivity 也可称为以下名称：
- TYCO
- Tyco Electronics
- TE CONN
- TYC
- TE CONNECT
- TE CONNECTIVITY LTD
- TE Connectivity Aerospace Defense and Marine
- TYCO ELECTRONICS CORPORATION
- TE Connectivity Measurement Specialties
- TYCO ELECTRO
- TYCO ELEC
- TYCO ELECTRONICS CORP
- TYCO ELECTRONIC
- TE Connectivity Passive Product
- TE Application Tooling
- TYCO ELECT
- TYCO ELE
- TE CONNECTIVITY SENSORS
- TE CONNECTIVITY (TYCO)
- TE SENSOR SOLUTIONS
- TE CONNECTIV
- TE (Tyco)
- TE Connectivity /CGS Brand
- TE Connectivity Solutions GmbH
- TYCO POWER SYSTEMS
- Tyco Electronics
- TE
- TE Connectivty
技术规格
Physical
ColorNatural
Contact MaterialBrass
Contact PlatingTin
Housing ColorNatural
Housing MaterialNylon
MaterialNylon
Number of Pins4
PlatingTin
Technical
Connector SystemWire-to-Board
Contact Current Rating4 A
Contact GenderMale
Contact Resistance20 mΩ
Contact StylePin
Current Rating4 A
Insulation Resistance1 GΩ
Mating RetentionWithout
Max Operating Temperature221 °C
Min Operating Temperature-40 °C
Number of Contacts4
Number of Ports1
Number of Positions4
Number of Rows1
Operating Supply Voltage125 V
OrientationVertical
PackagingBox
PCB Mount AlignmentWithout
PCB Mount RetentionWith
Plating Thickness1.999742 µm
SealableNo
ShieldingNo
Voltage Rating125 V
Voltage Rating (AC)125 V
Dimensions
Height7 mm
Lead Pitch2 mm
Length9.8 mm
Terminal Pitch2 mm
Width3.5814 mm
Wire Gauge (Max)22 AWG
Wire Gauge (Min)28 AWG
