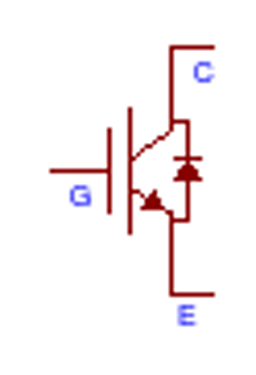

onsemi SGL160N60UFDTU

Trans IGBT Chip N=-CH 600V 160A 250000mW 3-Pin(3+Tab) TO-264 Rail
EOL
Manufacturer PageDatasheet

Price and Stock

See all price breaks
DistributorSKUMOQPkg
Microchip USASGL160N60UFDTU177100
18h
Win Source749183-SGL160N60UFDTU5,0004
>1wk
Worldway ElectronicsSGL160N60UFDTU11,3827Tape & Reel
1d
LTL Group6921143352
6d
Fmall Co., LimitedSGL160N60UFDTU20,330
>1wk

Datasheets & Documents

Download datasheets and manufacturer documentation for onsemi SGL160N60UFDTU.

Upverter

Technical Drawing1 page5 years ago
Datasheet0 pages0 years ago

element14 APAC

onsemi

Newark

Farnell

Inventory History

3 month trend:
Restocked
Powered bySpectra logo

Supply Chain

Lifecycle StatusEOL (Last Updated: 1 month ago)
Manufacturer Lifecycle StatusLAST SHIPMENTS (Last Updated: 1 month ago)

Related Parts

onsemiSGL50N60RUFDTU
Trans IGBT Chip N=-CH 600V 80A 250000mW 3-Pin(3+Tab) TO-264 Rail
Details
onsemiFGL60N100BNTD
IGBT 1000V 60A 180W TO264 / Trans IGBT Chip N-CH 1000V 60A 180000mW 3-Pin(3+Tab) TO-264 Tube
Details
onsemiFGL60N100BNTDTU
FGL60N100BNTD Series 1000 V 60 A Through Hole NPT Trench IGBT - TO-264
Details

Descriptions

Descriptions of onsemi SGL160N60UFDTU provided by its distributors.

Trans IGBT Chip N=-CH 600V 160A 250000mW 3-Pin(3+Tab) TO-264 Rail
SGL160N60UFD Series 600 V 160 A Flange Mount Ultra-Fast IGBT -TO-264
IGBT, ULTRAFAST, 600V, 160A, TO-264; DC Collector Current:160A; Collector Emitter Saturation Voltage Vce(on):2.6V; Power Dissipation Pd:250W; Collector Emitter; Available until stocks are exhausted Alternatives available
Fairchild’s RUFD series of Insulated Gate Bipolar Transistors(IGBTs) provide low conduction and switching losses as well as short circuit ruggedness. The RUFD series is designed for applications such as motor control, UPS and general inverters where short circuit ruggedness is a required feature.
IGBT, ULTRAFAST, 600V, 160A, TO-264; DC Collector Current: 160A; Collector Emitter Saturation Voltage Vce(on): 2.6V; Power Dissipation Pd: 250W; Collector Emitter Voltage V(br)ceo: 600V; Transistor Case Style: TO-264; No. of Pins: 3Pins; Operating Temperature Max: 150°C; Product Range: -; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (27-Jun-2018); Operating Temperature Min: -55°C; Operating Temperature Range: -55°C to +150°C; Transistor Type: IGBT
