설명
유통업체에서 제공한 C&K Components 7109P3YCQE에 대한 설명입니다.

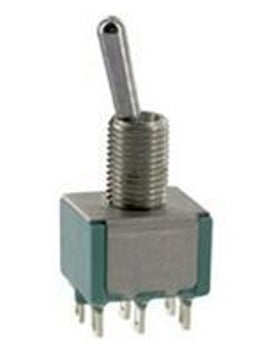

Switch Toggle None ON Mom SPDT Flat Lever PC Pins 5A 250VAC 28VDC PC Mount with Threads
Toggle Switches Miniature Rocker & L ever Handle Switch
C&K Series-7000 Toggle Switch 7109P3YCQE
Toggle Switch, SPDT, On-(on), Alternate, 5A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, High Flatted, Anti-rotation Actuator, Through Hole-straight
제조업체 별칭
C&K Components에는 유통업체가 대체하여 사용할 수 있는 전 세계 여러 브랜드가 있습니다. C&K Components는 다음 이름으로도 알려져 있습니다:
- C&K
- CKCOMP
- C&K COMPONENTS INC
- C&K SWITCHES
- C&K SWITCH
- C&K Components Corp
- C AND K COMPONENTS
- C & K COMPONENT
- C&K COMPONEN
- C AND K
- C&K CONNECT
- C&K/ITT CANNON
- C & K COMPONENTS LLC
- C&K COMPO
- ITTE
- C & K COMPON
- Littelfuse - C&K
- C&K Aerospace
- C&K COMPONENTS (VA)
- ITT/C&K
- C&K / ITT INDUSTRIES
- C&K Switc
- C&K Components (Schadow)
- RAFI-USA INC / C&K COMPONENTS
- C & K Components Incorporated
- C&K Components
- C&K Components Ltd.
기술 사양
Physical
Actuator MaterialBrass
Contact MaterialSilver
Contact PlatingSilver
Housing MaterialStainless Steel
MountPanel
Technical
Contact Current Rating5 A
Contact Resistance10 mΩ
Contact Voltage Rating (AC)120 V
Current Rating5 A
Electrical Life40 kcycles
Illumination TypeIlluminated, Non-Illuminated
Insulation Resistance1 GΩ
Max Current Rating5 A
Max Operating Temperature85 °C
Max Voltage Rating (DC)28 V
Min Operating Temperature-30 °C
Schedule B8536509065
SealableEPOXY TERMINAL SEALED
Switch FunctionOn-Mom
TerminationPC Pin
Throw ConfigurationSPDT
Voltage Rating (AC)120 V
Voltage Rating (DC)28 V
Dimensions
Actuator Length11.43 mm
Height8.89 mm
Length12.7 mm
