Cooper Bussmann LP-CC-4

Fuse Class CC Slow Blow Acting 4A 600V Holder Cartridge 10.3 X 38.1mm Carton

Fuse; Time-Delay; 4 A; 600 VAC; 0.41 0.05 in.; 1.5 in. 0.031 in.; Yellow

Electric Fuse, Time Delay Blow, 4A, 600VAC, 150VDC, 200000A (IR), Inline/holder

Bussmann by Eaton LOW-PEAK Class CC Time Delay Fuse; 4A; 600VAC/150VDC

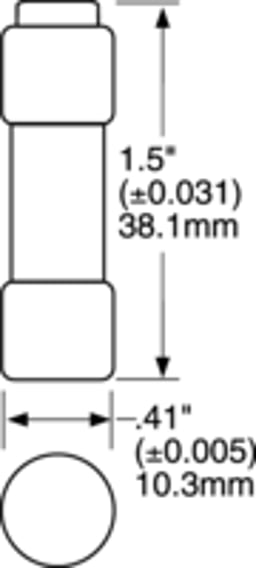

FUSE, 4A, 600V, TIME DELAY; Product Range:LP-CC Series; Fuse Current:4A; Voltage Rating VAC:600VAC; Voltage Rating VDC:300VDC; Fuse Size Metric:10.3mm x 38.1mm; Fuse Size Imperial:13/32" x 1-1/2"; Blow Characteristic:Time Delay RoHS Compliant: No

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann LP-CC-4 Time Delay Fuse Brand: Bussmann. Part Number: LP-CC-4. Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 4 A, 600 VAC/150 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size. Additional Description: BUSS-LP-CC-4 LOW PEAK CC TIME DELAY. Catalog Description: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 4 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac..
