説明
APEM IMR7P422234の詳細は販売業者から提供されます。

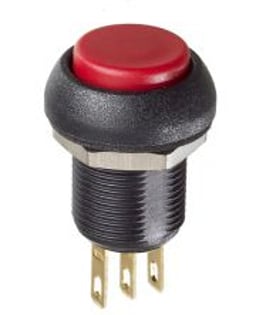

Pushbutton Switch Fd Dble Icon Rohs Compliant: Yes |Apem IMR7P422234
SPDT, Momentary, 3A, 28VDC, Solder Terminal, Through Hole-straight
Black Round, Curved switch with NC + NO terminals and Silver, Gold plated (standard) contacts and Black Bezel
PUSHBUTTON SWITCH FD DBLE ICON
メーカーの別名
APEMは世界中でいくつかのブランドを持っており、販売業者が代替名として使用するかもしれません。 APEM は以下の名前でも知られているかもしれません：
- APEM Inc
- APEM COMPONENTS
- HARTMANN
- APEM COMPONENTS INC
- APE
- APR
- APEM GROUP
- APEM COMPONENTS LLC
- APEM GMBH
- Apem Component
- IDEC - APEM
- PEM
- APEM/American Switch Corp
- APEM COMPONENTS LLC (VA)
- APEM BAUELEMENTE GMBH
- APEM COMPONENTS (VA)
- APEM Components Ltd
- APEM SWITCH
- APEMCOMP
- IDEC - MEC
- APEM SWITCHES
- APEM COMPO
- APEM SINGLE POL
- APEM/MEC
- APEM (MC)
- APEM Components Inc
技術仕様
Physical
Actuator MaterialPolyamide
ColorBlack
Contact MaterialSilver
Contact PlatingGold
Dielectric MaterialPolyamide
Housing MaterialPolyamide
MaterialSilver
Mechanical Life1 Mcycles
MountFront, Panel
Technical
Contact Resistance100 mΩ
Current Rating3 A
Electrical Life25 kcycles
Illumination TypeIlluminated
Insulation Resistance1 GΩ
Max Current Rating3 A
Max Operating Temperature85 °C
Max Voltage Rating (DC)28 V
Min Operating Temperature-40 °C
SealableEPOXY
Switch FunctionOn-Mom
TerminationPC Pin
Throw ConfigurationSPDT
Voltage Rating (DC)28 V
Dimensions
Actuator Length1.9812 mm
Height14.4018 mm
Width12 mm
