説明
TDK-Lambda HWS15-24/Aの詳細は販売業者から提供されます。

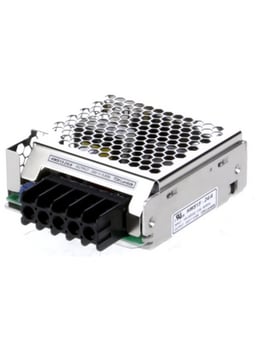

AC-DC Unregulated Power Supply Module, 1 Output, 15.6W, Hybrid
AC/DC Power Supply Single-OUT 24V 0.65A 15.6W 5-Pin
POWER SUPPLY, AC-DC,24V,0.65A,85-265V IN, ENCLOSED, DIN RAIL, PFC,16W, HWS SERIES
Ac-Dc Converter, Enclosed, 1 O/P, 15W, 650Ma, 24V
AC-DC, 115-230VAC, OUTPUT 24V 0.65A, 15W
AC-DC Regulated Power Supply Module
PSU, 15W, 24V; No. of Outputs: 1Outputs; Output Power Max: 15W; Output Voltage - Output 1: 24V; Output Current - Output 1: 650mA; Output Voltage - Output 2: -; Output Current - Output 2: -; Output Voltage - Output 3: -; Output
メーカーの別名
TDK-Lambdaは世界中でいくつかのブランドを持っており、販売業者が代替名として使用するかもしれません。 TDK-Lambda は以下の名前でも知られているかもしれません：
- TDK-Lambda Americas Inc
- TDK-LAMBDA CORPORATION
- TDK-LAMBDA CORP
- TDK-Lambda Inc
- TDK-Lambda Americas
- TDK-LAMBDA ELECTRONICS
- TDK Lambda High power
- LAMBDA ELECTRONICS
- TDK-LAM
- LAMBDA SEMICONDUCTORS
- TDK POWER SUPPL
- TDK-LAMB
- LAMBDA ADVANCED ANALOG INC
- TDK-LAMBDA AMERICAS INC [CHP]
- TDK (Lambada Americas Inc)
- TDK-LAMBDA AMERICAS HIGH POWER DIVI
- DENSEI LAMBDA
- TDK-LAMBDA AMER
- TDK LAMDA
- TDK / TDK-Lambda
- Lambda Electronics - TDK Lambda
- TDK / Lambda Power
- Lambda/TDK
- TDK-LAMDA CORPORATION
- MIJO TECHNOLOGY
技術仕様
Physical
MountChassis Mount, Panel
Number of Pins5
Number of Terminals6
Weight560.186577 g
Technical
Current - Output 1650 mA
Current Rating650 mA
Efficiency83 %
Frequency63 Hz
Isolation Voltage3 kV
Max Input Voltage265 V
Max Input Voltage (AC)265 V
Max Operating Temperature50 °C
Max Output Current650 mA
Max Output Power15.6 W
Max Output Voltage28.8 V
Max Power Dissipation15 W
Min Input Voltage85 V
Min Input Voltage (AC)85 V
Min Operating Temperature-10 °C
Min Output Voltage19.2 V
Nominal Input Voltage100 V
Nominal Output Voltage24 V
Number of Circuits1
Number of Outputs1
Output Current650 mA
Output Voltage24 V
Voltage - Output 124 V
Dimensions
Depth82 mm
Height82.042 mm
Length31.5 mm
Width82 mm
