説明

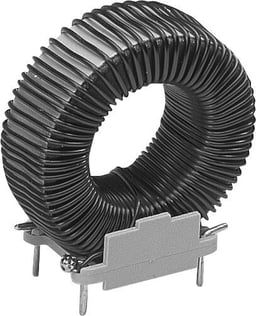

Eaton CTX1000-1-52M-Rの詳細は販売業者から提供されます。
Inductor Power Toroid 1.004m(OCL)H/1mH 20% 100KHz Powdered Iron 1.5A 638mOhm DCR Pin Bulk
General Purpose Inductor, 1004uH, 20%, 1 Element, Iron-Core
Coiltronics Rohs Compliant: Yes |Eaton Coiltronics CTX1000-1-52M-R
IND, LCPI, 1000UH, 2.1A HEADER MOUNTED
CTX1000-1-52M-R, EATON ELECTRONICS
INDUCTR TOROID 1000UH HEADER MNT
メーカーの別名
Eatonは世界中でいくつかのブランドを持っており、販売業者が代替名として使用するかもしれません。 Eaton は以下の名前でも知られているかもしれません：
- Eaton - Electronics Division
- EATON CORPORATION
- Eaton - Bussmann Electrical Division
- EATON CORP
- EAT
- Eaton Electronics
- EATON/COMMERCIAL CONTROLS
- EATON AEROSPACE
- Eaton Bussmann
- Eaton Electrical
- EATON/AEROSPACE CONTROLS
- EATON EMOBILITY TRANSPORTATION
- EATON POWERWARE/MGE OFFICE PROTECTION
- EATON ELECTRIC
- EATON AERO
- EATON BUSSMANN ELECTRICAL
- EATON AEROSPAC
- Eaton Switches
- EATON ELE
- EATON/C&H
- Eaton Moeller
- EATON SWITZERLAND
- Eaton Interconnect
- Eaton / Circuit Breakers
- EATON CHAR-LYNN
技術仕様
Physical
Case/PackageRadial
Core MaterialFerrite
MountThrough Hole
Number of Terminals4
Weight453.59237 mg
Technical
Current Rating1.5 A
DC Current1.5 A
DC Resistance (DCR)638 mΩ
Inductance1 mH
Lead/Base StylePin
Max Current Rating1.5 A
Max DC Current2.1 A
Max Operating Temperature75 °C
Military StandardNot
Min Operating Temperature-40 °C
Number of Circuits1
PackagingBulk
Resistance638 mΩ
Saturation Current2.1 A
ShieldingNo
TerminationRadial
Test Frequency100 kHz
Tolerance20 %
Dimensions
Depth21.7 mm
Diameter29.8 mm
Height31.2 mm
Lead Diameter1 mm
Lead Length4.25 mm
Lead Pitch23 mm
Length35.4 mm
Width21.7 mm
