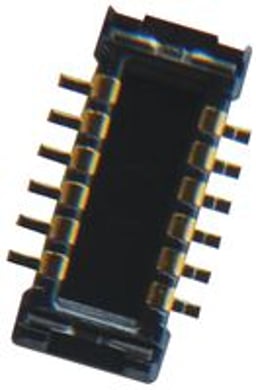

Molex 503308-1210
Obsolete
Prezzo e stock
Distributori autorizzati
Distributori di stock non autorizzati
Rivenditori non autorizzati
Distributore
SKU
Min
Pkg
Prezzi all'ingrosso
Cronologia dell'inventario
Tendenza a 3 mesi: -17.63%
Modelli CAD
0 models available
Parti alternative
0 parti disponibili
Schede tecniche e documenti
Scarica le schede tecniche e la documentazione del produttore per Molex 503308-1210.
Supply Chain
Country of OriginJP
Export Control Classification Number (ECCN) CodeEAR99
Harmonized Tariff Schedule (HTS) Code8536.69.40.40
Introduction Date2010-01-14
Lifecycle StatusObsolete (Last Updated: 6 years ago)
LTB Date2019-03-18
LTD Date2019-06-18
Manufacturer Lifecycle StatusOBSOLETE (Last Updated: 6 years ago)
Parti correlate
Molex501591-1211
Board to Board & Mezzanine Connectors 0.4 B/B Rec Assy 12C ssy 12Ckt EmbsTp Pkg
Molex501591-1011
Solder pad 400μm 2 10pin SMD,P=0.4mm Bracket mounting，SMD mount 5.1mm(Length)*3.4mm(height)
Molex501594-1011
CONNECTOR, STACKING, HEADER, 10POS, 2ROW; Available until stocks are exhausted
HIROSE ELECTRICDF12C(3.0)-10DS-0.5V(81)
0.5mm Pitch 3.0/3.5/4.0/5.0mm Stack Height SMT Board to Board Connectors
HIROSE ELECTRICDF12(3.0)-10DP-0.5V(86)
Board Stacking Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
HIROSE ELECTRICDF12A(3.0)-10DS-0.5V(81)
0.5mm Pitch 3.0/3.5/4.0/5.0mm Stack Height SMT Board to Board Connectors
Descrizioni
Descrizioni di Molex 503308-1210 fornite dai suoi distributori.
0.4 B/B Plug Assy 12Ckt Embstp Pkg/Mol; |Molex 503308-1210
Solder pad 400μm 2 12pin 700μm SMD mount 3.87mm(Length)*1.8mm(height)
Conn Board to Board PL 12 POS 0.4mm Solder ST SMD SlimStack™ T/R
SlimStack Board-to-Board Plug, 0.40mm Pitch, Surface Mount, Dual Row, Vertical Stacking, 0.70mm Stacking Height, 12 Circuits
MEZZANINE CONN, PLUG, 12POS, 2ROW, 0.4MM;
Board Stacking Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
Alias del produttore
Molex ha diversi marchi in tutto il mondo che i distributori possono utilizzare come nomi alternativi. Molex può anche essere conosciuto con i seguenti nomi:
- MOLEX INC
- MOL
- MLX
- Molex LLC
- Molex Connector Corporation
- MOLE
- MOLX
- MOLEX INCORPORATED
- MOLEX ELECTRONICS
- MOLEX CONNECTOR CORP
- MOLEX HONG KONG CHINA LTD
- MOLEX INTERCONNECT GMBH
- Molex / FCT
- MXA
- Molex Taiwan Ltd
- Molex - Oplink Communications LLC
- MOLEX-ETC
- MOLEX PREMISE NETWORK
- MOLEX GMBH
- MOLEX INDUSTRIAL HDC
- MOELX
- MOLEX INDUSTRIAL
- MOLEX ELEKTRONIK GMBH
- MOLEX INTERCONNECT
- MOLEX CONNECTOR
- Molex, LLC
Cronologia dell'inventario
Tendenza a 3 mesi: -17.63%
Modelli CAD
0 models available
Parti alternative
0 parti disponibili
Specifiche tecniche
Physical
Contact MaterialCopper
Contact PlatingGold
Dielectric MaterialLiquid Crystal Polymer
Housing ColorBlack
Housing MaterialPolymer
Insulation ColorBlack
MountSurface Mount
Number of Pins12
PlatingGold
Technical
Connector TypePlug
Contact Resistance80 mΩ
Current Rating300 mA
GenderMale
Insulation Resistance100 MΩ
Max Operating Temperature85 °C
Max Voltage Rating (AC)50 V
Max Voltage Rating (DC)50 V
Min Operating Temperature-40 °C
Number of Circuits12
Number of Contacts12
Number of Positions12
Number of Rows2
OrientationVertical
TerminationSolder
Voltage Rating (AC)50 V
Dimensions
Depth1.8 mm
Mated Stacking Heights700 µm
Pitch406.4 µm
Stack Height700 µm
Terminal Pitch400 µm
Schede tecniche e documenti
Scarica le schede tecniche e la documentazione del produttore per Molex 503308-1210.
Conformità
Classificazione ambientale
China RoHSCompliant
REACH SVHCYes
RoHSCompliant
Dichiarazioni di conformità
