Cooper Bussmann FWH-125B
$ 182.7
Production
Precio y existencias
Distribuidores autorizados
Distribuidores no autorizados
Vendedores no autorizados
Historial de existencias
Tendencia de 3 meses: +99.69%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
0 piezas disponibles
Descripciones
Descripciones de Cooper Bussmann FWH-125B suministradas por sus distribuidores.

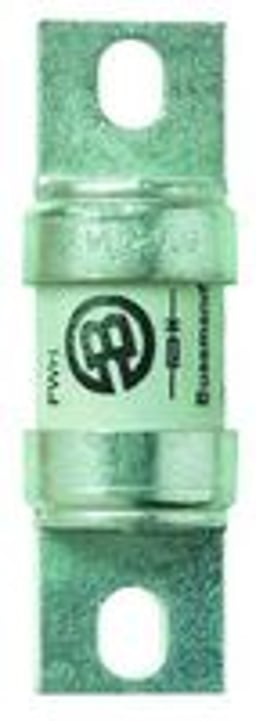

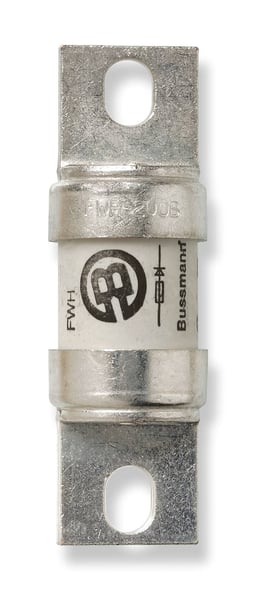

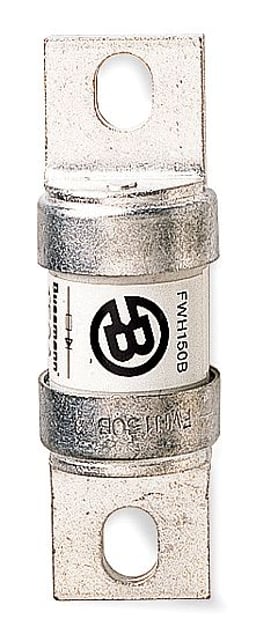

FWH Series Fast-Acting 500 V 125 A Ø29.36x46.63 mm Ferrule Style High Speed Fuse
FUSE, 125A, 500V, BLADE, FAST ACTING; Vo; FUSE, 125A, 500V, BLADE, FAST ACTING; Voltage Rating VDC:500V; Voltage Rating VAC:500V; Fuse Current:125A; Fuse Size Imperial:1.156" x 1.836"; Series:FWH; Blow Characteristic:Fast Acting; Current Rating:125A
Eaton Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class
COOPER BUSSMANN FWH-125B Fuse, 125A, FWH, 500VAC/DC. More details: Fuse, 125 Fuse Amps, Nonindicating, FWH Series, 500VAC/DC Voltage Rating, Fast Acting, Single Element, Ceramic Body Material, Nonrejection, Body Style Bolt On, Interrupt Rating 200kA at 500VAC, 50kA at 500VDC, Length 3-5/8 In., Diameter 1-5/32 In., Functionally Equal To Ferraz/Gould A50P, Littelfuse L50S, Standards CE, UL Recognized, CSA Certified
Alias de fabricantes
Cooper Bussmann tiene diversas marcas a nivel mundial que los distribuidores pueden usar como nombres alternativos. Cooper Bussmann también podría ser conocido por los siguientes nombres:
- BUSSMANN
- COOPER BUSSMAN
- BUSSMAN
- BUSS
- BUSSMANN/COOPER
- BUS
- Eaton Bussmann
- COOPER BUSS
- BUSSMA
- BUSS FUSES
- COOPER BUSSMANN INC
- MAGNUM/COOPER BUSSMANN
- BUSSMN
- BUSSMANN / EATON
- BUSSMANN BY EATON
- BUSSMANN DIVISION
- EDISON
- BUSS FUSE
- BUSSMAN FUSES
- EATON BUSSMANN SERIES
- COOPER BUSSM
- BUSSMANN COOPER BUSS
- Eaton / Cooper Bussmann
- COOPER BU
- COOPER BUSSMANN LLC
Historial de existencias
Tendencia de 3 meses: +99.69%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
0 piezas disponibles
Especificaciones técnicas
Physical
MountBolt
Number of Pins2
Weight154.221406 g
Technical
Current Rating125 A
Fuse Current125 A
Max Power Dissipation25 W
Max Voltage Rating (AC)500 V
PackagingBox
Power Dissipation25 W
TypeElectrical
Voltage Rating500 V
Voltage Rating (AC)500 V
Voltage Rating (DC)500 V
Working Voltage500 V
Dimensions
Diameter29.21 mm
Height46.63 mm
Length29.36 mm
