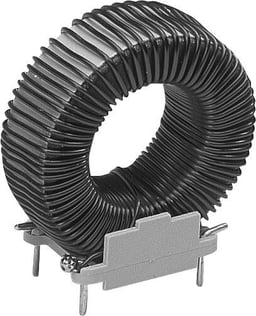

Eaton CTX100-5-52M-R
$ 8.084
Production
Precio y existencias
Distribuidores autorizados
Distribuidores no autorizados
Vendedores no autorizados
Historial de existencias
Tendencia de 3 meses: +1800%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
0 piezas disponibles
Componentes relacionados
API DelevanPT100R-1550
ROHS3Compliant Toroidal Active WIRE Fixed Inductor 1kHz 28mOhm Max 100muH ±15%
Descripciones
Descripciones de Eaton CTX100-5-52M-R suministradas por sus distribuidores.
Inductor Power Toroid 97.2uH/100uH 20% 100KHz Powdered Iron 8.2A 26.7mOhm DCR Pin Bulk
Toroidal Inductor, 97.2 uH, 8.2 A, 26.7m Ohm, 20%, Through Hole
General Purpose Inductor, 97.2uH, 20%, 1 Element, Iron-Core
Ind,lcpi,100Uh, 7.5A Hdr Rohs Compliant: Yes
INDUCTOR TOROID PWR 100UH 8.2A
THROUGH HOLE TOROIDAL INDUCTORS;
Alias de fabricantes
Eaton tiene diversas marcas a nivel mundial que los distribuidores pueden usar como nombres alternativos. Eaton también podría ser conocido por los siguientes nombres:
- Eaton - Electronics Division
- EATON CORPORATION
- Eaton - Bussmann Electrical Division
- EATON CORP
- Eaton Electronics
- EAT
- EATON/COMMERCIAL CONTROLS
- EATON AEROSPACE
- Eaton Bussmann
- Eaton Electrical
- EATON/AEROSPACE CONTROLS
- EATON EMOBILITY TRANSPORTATION
- EATON POWERWARE/MGE OFFICE PROTECTION
- EATON ELECTRIC
- EATON AERO
- EATON BUSSMANN ELECTRICAL
- EATON AEROSPAC
- Eaton Switches
- EATON ELE
- EATON/C&H
- Eaton Moeller
- EATON SWITZERLAND
- Eaton Interconnect
- Eaton / Circuit Breakers
- EATON CHAR-LYNN
Historial de existencias
Tendencia de 3 meses: +1800%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
0 piezas disponibles
Especificaciones técnicas
Physical
Case/PackageRadial
Core MaterialFerrite
MountThrough Hole
Number of Terminals4
Weight69.399633 g
Technical
Current Rating8.2 A
DC Resistance (DCR)26.7 mΩ
Inductance97.2 µH
Lead/Base StylePin
Max Current Rating8.2 A
Max DC Current7.5 A
Max Operating Temperature75 °C
Min Operating Temperature-40 °C
Number of Circuits1
PackagingBulk
Resistance27 mΩ
Saturation Current7.5 A
ShieldingNo
TerminationRadial
Test Frequency100 kHz
Tolerance20 %
Dimensions
Depth21.7 mm
Diameter37.8 mm
Height40.2 mm
Height - Seated (Max)40.2082 mm
Lead Diameter1 mm
Lead Length4.25 mm
Lead Pitch23 mm
Length35.4076 mm
Width21.7 mm
