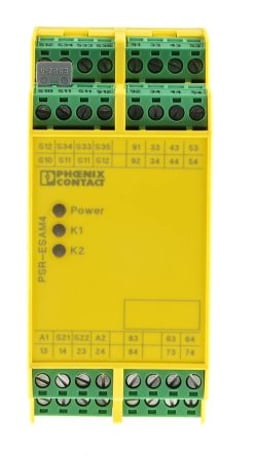

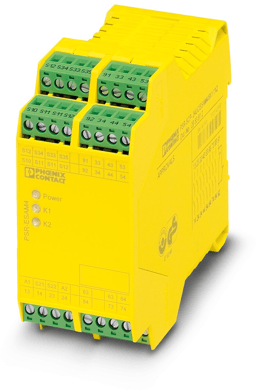

Phoenix Contact 2963912
$ 618.75
Production
Precio y existencias
Distribuidores autorizados
Distribuidores no autorizados
Vendedores no autorizados
Historial de existencias
Tendencia de 3 meses: +45.82%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
0 piezas disponibles
Fichas técnicas y documentos
Descargar fichas técnicas y documentación del fabricante para Phoenix Contact 2963912.
Descripciones
Descripciones de Phoenix Contact 2963912 suministradas por sus distribuidores.
Safety relays, 8 Form A (N/O), 24 V (DC), 11 Ω, 6 A, 250 V (DC), 250 V (AC), 2963912
Phoenix Contact Veiligheidsrelais PSR-SCP- 24UC/ESAM4/8X1/1X2 - 2963912
Electromechanical Relay 24VDC 24VAC 6A 8PST-NO/SPST-NC( (99mm 45mm 114.5mm)) DIN Rail Safety Relay
SAFETY RELAYS, SAFETY, 1 CHANNEL, 250 VAC/VDC, PSR CLASSIC SERIES
Safety Relay, Momentary, 0.12A (Coil), 24VDC (Coil), 2880mW (Coil), 250VDC (Contact), AC/DC Input, DIN-Rail Mount
CONTACTOR KIT REV. W/INTERLOCK 32A
RELAY, SAFETY, 250V, 6A; Coil Voltage:24VAC/VDC; Contact Configuration:-; Product Range:PSRclassic Series; Relay Mounting:DIN Rail; Contact Current:6A; Relay Terminals:Screw; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:250V RoHS Compliant: Yes
1 or 2-channel safety relay for emergency off and safety door circuits, 8 N/O contacts, 1 N/C contact, undelayed, optionally with start button monitoring or automatic start for category 4 / EN 954-1, optionally with or without cross-circuit monitoring
Alias de fabricantes
Phoenix Contact tiene diversas marcas a nivel mundial que los distribuidores pueden usar como nombres alternativos. Phoenix Contact también podría ser conocido por los siguientes nombres:
- PHOENIX
- PHEONIX
- PHO
- PHOENI
- PHX
- PHOE
- PHOENIX CONTACT INC
- PHOENIX CONTACTS
- PHOENX
- PHOENIX CONT
- PHOENIX CONTACT GMBH & CO KG
- PHOENIX CONTAC
- PHEONIX CONTACT
- Phoenix Contact GmbH & Co KG
- PHOENIX CONTACT POWER
- Phoenix Contact Canada
- Phoenix Contact GmbH & Company
- PHOENIX CONTACT INC - POWER
- Picker Components
- PHOENIX CONTACT (VA)
- Phoenix Contact Deutschland GmbH
- PHOENIXUS
- PHOENIX CONTACT GMBH and COKG
- PHÖNIX CONTACT
- Phoenic Contact
- Phoenix Contact AG
Historial de existencias
Tendencia de 3 meses: +45.82%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
0 piezas disponibles
Especificaciones técnicas
Physical
Contact MaterialGold, Silver, Tin
Weight459.942663 g
Technical
Coil Current120 mA
Coil Power2.88 W
Coil Resistance200 Ω
Coil Voltage (AC)24 V
Coil Voltage (DC)20.4 V
Contact Current Rating6 A
Contact Voltage Rating (AC)250 V
Max Current Rating6 A
Max Operating Temperature55 °C
Max Voltage Rating (AC)250 V
Max Voltage Rating (DC)250 V
Min Operating Temperature-20 °C
Number of Channels1
Operate Time60 ms
Operating Supply Voltage24 V
PackagingBulk
Release Time20 ms
Response Time250 ms
Schedule B8536490050
SealableDUST PROOF, IP20, IP54
TerminationScrew
Throw Configuration4P, 8PST, SPST
Dimensions
Depth114.5 mm
Height114.5 mm
Length99 mm
Width45.72 mm
Fichas técnicas y documentos
Descargar fichas técnicas y documentación del fabricante para Phoenix Contact 2963912.
Cumplimiento
Clasificación ambiental
China RoHSNon-Compliant
Lead FreeLead Free
REACH SVHCNo
RoHSCompliant
