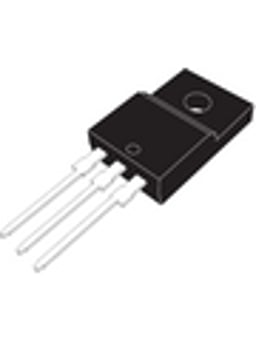

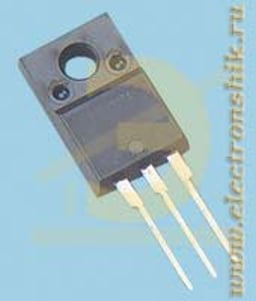

STMicroelectronics L7805CP
Production
Technical Specifications
Physical
Case/PackageTO-220-3
MountThrough Hole
Number of Pins3
Weight2.299997 g
Technical
Dropout Voltage2 V
Max Input Voltage35 V
Max Operating Temperature125 °C
Max Output Current1.5 A
Min Input Voltage7 V
Min Operating Temperature-40 °C
Min Output Voltage4.65 V
Nominal Output Voltage5 V
Number of Channels1
Number of Outputs1
Number of Regulators1
Output Current1.5 A
Output TypeFixed
Output Voltage5 V
PolarityPositive
Power Supply Rejection Ratio (PSRR)62 dB
Quiescent Current8 mA
Schedule B8542390000
Tolerance5 %

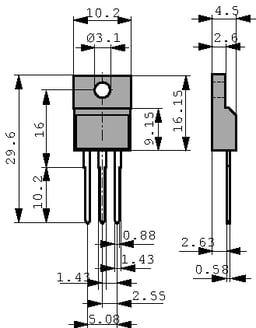

Dimensions
Height9.3 mm
Length10.4 mm
Width4.6 mm
Inventory History
3 month trend: -54.71%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Documents
Download datasheets and manufacturer documentation for STMicroelectronics L7805CP.
Upverter
SOS electronic
element14 APAC
Burklin Elektronik
LKR
DigiKey
Engineering Resources
View Evaluation kits and Reference designs for STMicroelectronics L7805CP.
Related Parts
STMicroelectronicsL7805ABP
IC, REG LDO, 5V, 1A, TO220; Fixed Output Voltage Nom.:5V; Adjustable Min:-; Max:-; Input Min:10V;
STMicroelectronicsL7805ACP
L7805 Series 1.5 A 5 V Three Terminal Voltage Regulator - TO-220FP
STMicroelectronicsL7808ABV-DG
Standard Regulator Pos 8V 1.5A 3-Pin(3+Tab) TO-220AB Tube
Descriptions
Descriptions of STMicroelectronics L7805CP provided by its distributors.
IC, V REG +5.0V, 7805, TO-220FP-3; Fixed Output Voltage Nom.:5V; Adjustable Min:-; Max:-; Input
L7805 Series 1.5 A 5 V Three Terminal Voltage Regulator - TO-220FP
Standard Regulator Pos 5V 1.5A 3-Pin (3+Tab) TO-220FP Tube
Linear Voltage Regulator 5V/1,5A TO220ISO L 7805 CP
POSITIVE VOLTAGE REGULATOR IC Fixed Positive Standard Regulator, 5VBIPolar, PSFM3
STMICROELECTRONICS - L7805CP - IC, V REG +5.0V, 7805, TO-220FP-3
Voltage regulator, 5 VDC, 1.5 A, positive, TO-220, L7805CP
IC, V REG +5.0V, 7805, TO-220-3; Fixed Output Voltage Nom.: 5V; Adjustable Output Voltage Min: -; Adjustable Output Voltage Max: -; Input Voltage Min: 10V; Input Voltage Max: 35V; Product Range: 7805 Voltage Regulators; Output Current: 1.5A; Output Type: Fixed; Linear Regulator Case Style: TO-220; No. of Pins: 3Pins; Operating Temperature Min: 0°C; Operating Temperature Max: 125°C; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (17-Dec-2015); Base Number: 7805; IC Generic Number: 7805; Operating Temperature Range: 0°C to +150°C; Output Current Max: 1A; Output Voltage: 5V; Output Voltage Nom.: 5V; Voltage Regulator Type: Positive Fixed
Manufacturer Aliases
STMicroelectronics has several brands around the world that distributors may use as alternate names. STMicroelectronics may also be known as the following names:
- ST MICRO
- STM
- SGS
- SGS THOMSON
- INMOS
- STMICROE
- STMICROEL
- STMICR
- ST MIC
- ST MICROELECTRONIC
- SGS THOMPSON
- SESCOSEM
- STMICROELECT
- ST8
- STMICROELECTRON
- WAFERSCALE
- SGS-ATES
- ST MICROELECTRONICS SEMI
- ST/SGS
- ST MICROELECTRO
- SGST
- THOMS
- STMICROELE
- WAFERSCALE INTEGRATION INC
- SGS-Thomson Microelectronics
- ST Microeletronics
Inventory History
3 month trend: -54.71%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageTO-220-3
MountThrough Hole
Number of Pins3
Weight2.299997 g
Technical
Dropout Voltage2 V
Max Input Voltage35 V
Max Operating Temperature125 °C
Max Output Current1.5 A
Min Input Voltage7 V
Min Operating Temperature-40 °C
Min Output Voltage4.65 V
Nominal Output Voltage5 V
Number of Channels1
Number of Outputs1
Number of Regulators1
Output Current1.5 A
Output TypeFixed
Output Voltage5 V
PolarityPositive
Power Supply Rejection Ratio (PSRR)62 dB
Quiescent Current8 mA
Schedule B8542390000
Tolerance5 %
Dimensions
Height9.3 mm
Length10.4 mm
Width4.6 mm
Documents
Download datasheets and manufacturer documentation for STMicroelectronics L7805CP.
Upverter
SOS electronic
element14 APAC
Burklin Elektronik
LKR
DigiKey
Compliance
Environmental Classification
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCNo SVHC
RoHSCompliant
